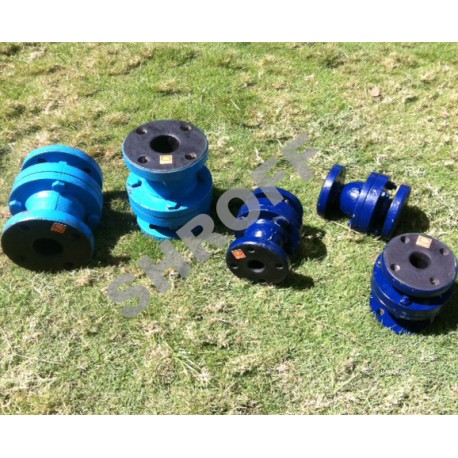

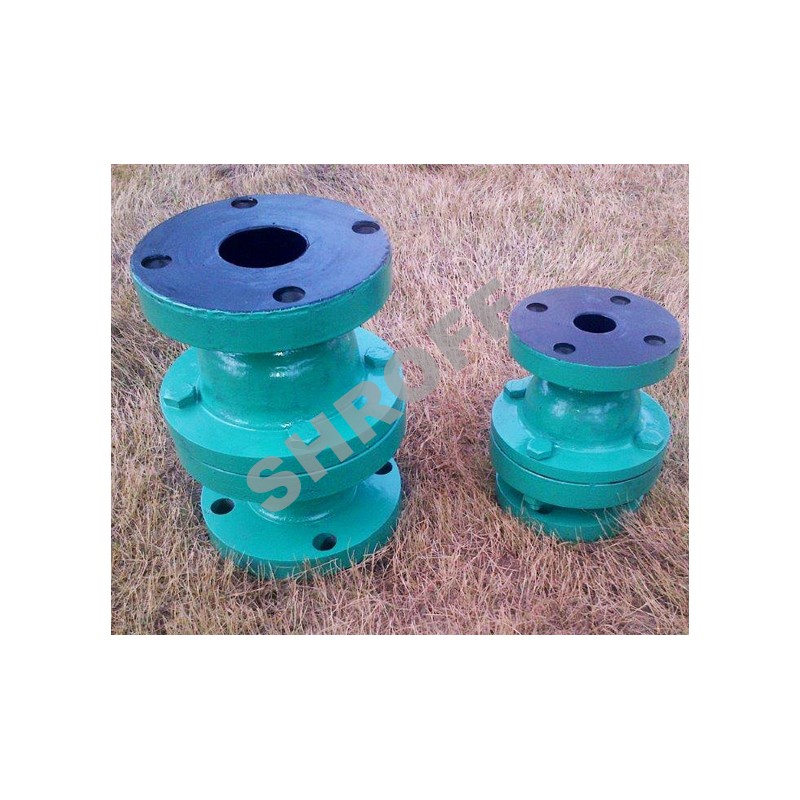

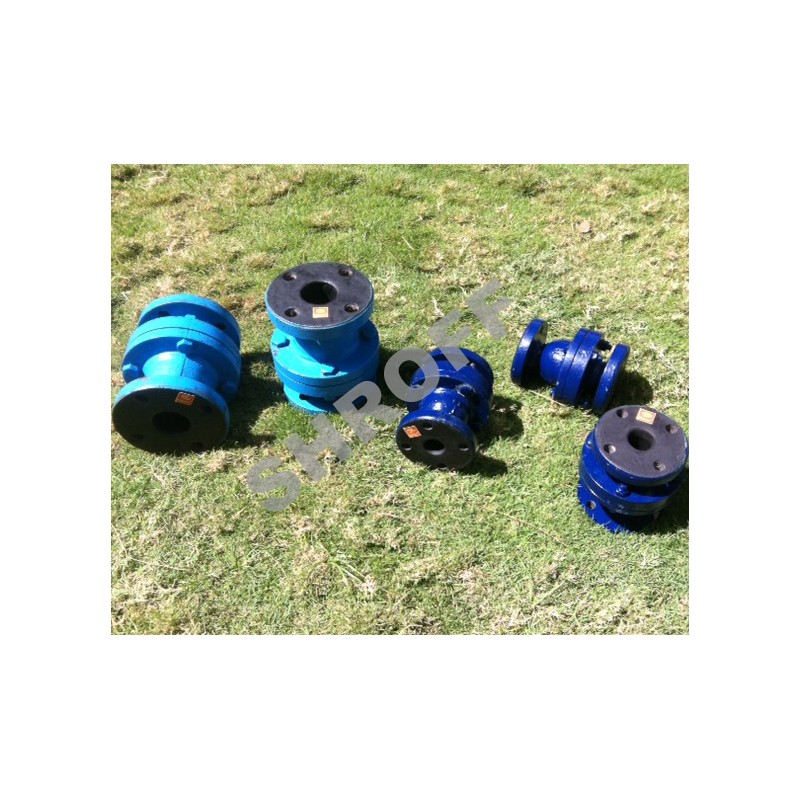

Rubber Lined Non Return Valve

New

₹ 1,400.00

Add to wishlist

More info

Feature

  • Pressure Class: PN 10 and PN 16
  • Face to Face dimension: Manufactures standard, ANSI B 16.10, BS 1868
  • Testing standard -BS- 6755 PART – I, API – 598
  • Size available: 1” to 10” (25mm TO 250mm)
  • End connection: Flanged Ends to ANSI -16.5, BS- 10 TABLE
  • Check valves property is Non Sticky
  • High resistance to Thermal and Mechanical shock
  • Suitable in vacuum and pressure application
  • Easy Installation, Zero Maintenance, Economical and long life


MOC

BODY, COVER INTERNAL WORKING PARTS DISC, SEAT AND BODY LINING Disc, Hinge, Lever
Cast Carbon Steel to ASTM A 216 G WCB. EPDM  Cast carbon steel to IS 2062 with Rubber Moulding
Cast Stainless steel to ASTM A 351 Gr. CF 8, CF8M, CF3, CF3M. Food grade Stainless steel to AISI 304/316 /304L /316L with Rubber Moulding.
Stainless Steel to AISI 304, 316, 304L, 316L. Nitrile Stainless steel to AISI 304/316 /304L Stainless steel to ASTM A 351 Gr. CF 8/8M/3/3M with Rubber Mouldingwith Rubber Moulding.
Cast Iron as per ASTM A 126 CLASS B IS 210 Gr.FG200/220/260. Silicon
Neoprene
BUNA – N
Hard Ebonite
Natural soft Rubber
